w1spBox Studio

Setup guide

Your w1spBox runs GP2040-CE — the open-source firmware behind most modern leverless controllers. It's plug & play out of the box; the steps below are for anyone who wants to tune button mapping, SOCD mode, or update firmware.

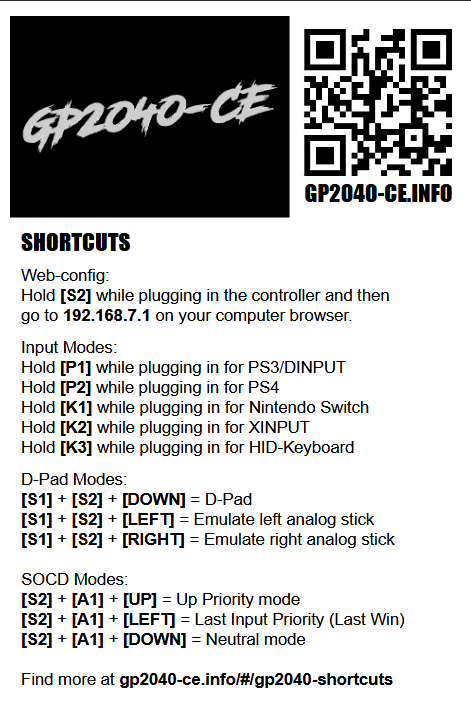

GP2040-CE shortcuts reference

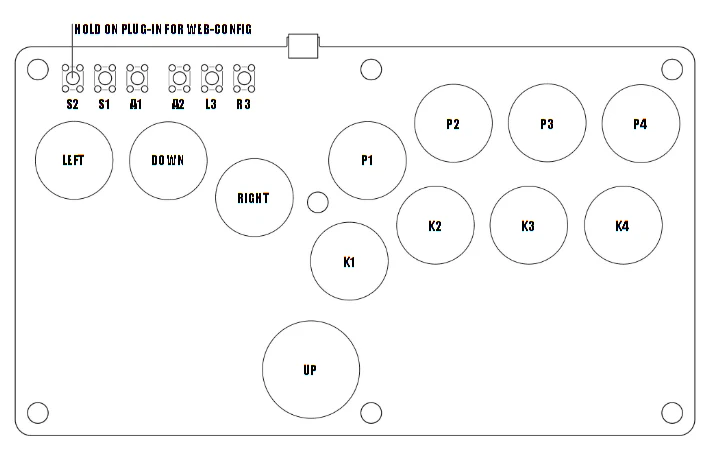

w1spBox button layout diagram

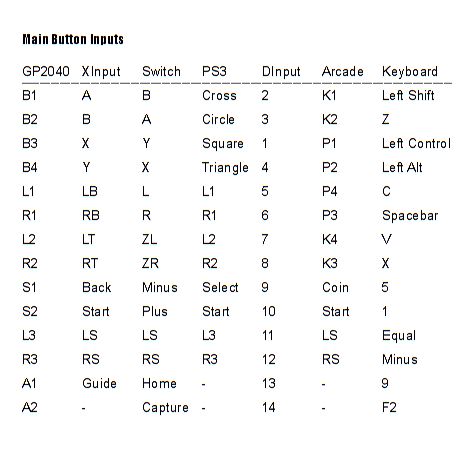

Button input mapping table

Stuck? Reach out and I'll help you sort it.

Contact support GP2040-CE features
